PS3300FE-3M Electric Pallet Stacker, 3300 lbs Capacity, 9.8 ft Lifting Height, Electromagnetic Brake

• Temporarily out of stock.
• Pre-order now, ready to ship by Dec 30th 2024.
• Free freight shipping
• 2 year warranty

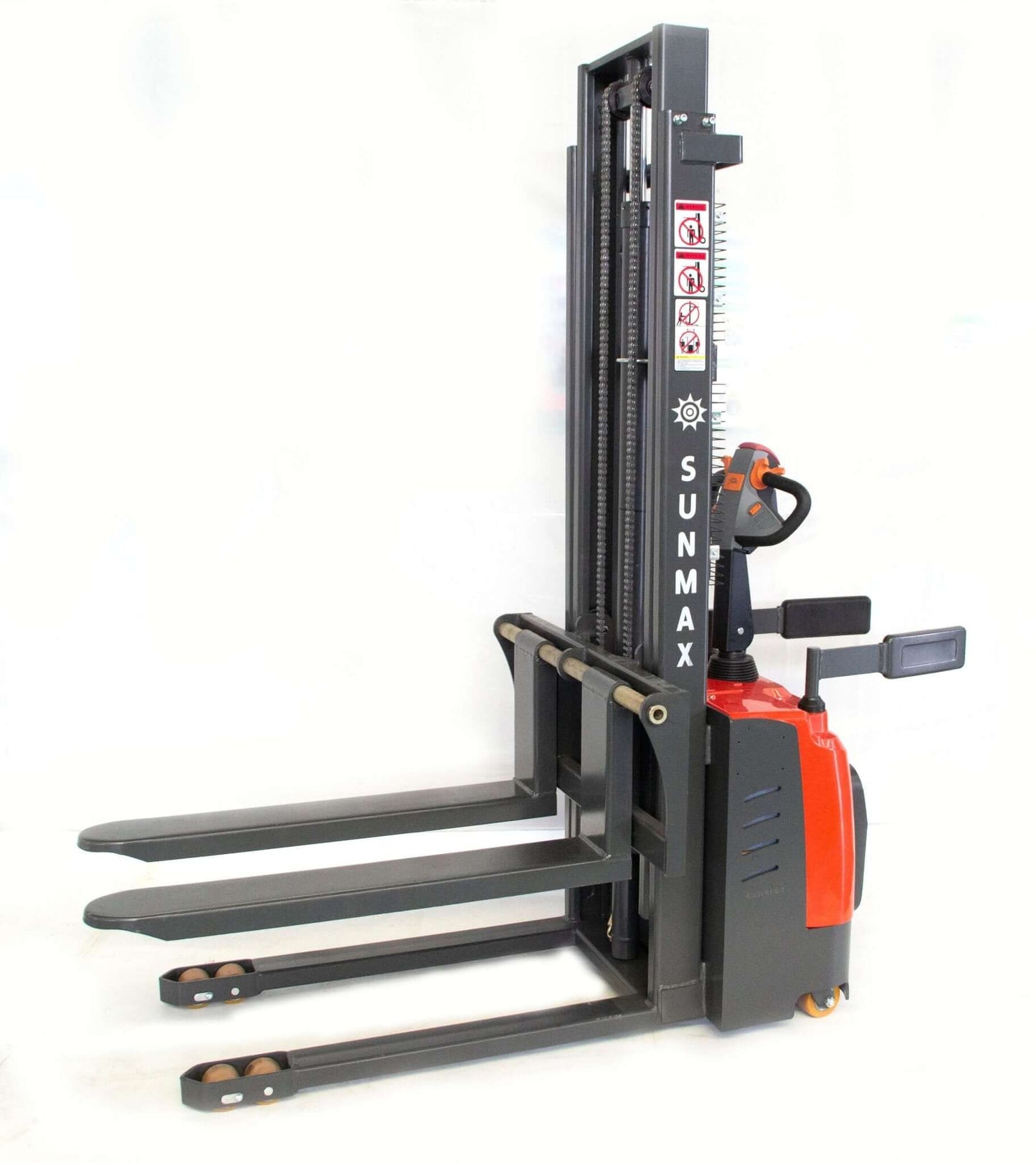

SUNMAX PS3300FE-3M Electric Pallet Stacker is built to provide outstanding performance and reliability in material handling.

This powerful electric stacker is designed to lift and transport loads up to 3,307 lbs (1,500 kg) to heights of up to 9.8 feet (3000 mm), making it perfect for warehouses, factories, and distribution centers.

With advanced safety features and intuitive controls, the PS3300FE-3M ensures efficient, safe, and hassle-free operation for all your stacking needs.

Key Features

1. High Load Capacity and Reach:
   • 3300 lbs (1500 kg) Capacity: Handles heavy loads with ease, ensuring efficient material handling.
   • 9.8 feet (3000 mm) Lifting Height: Ideal for high stacking requirements in warehouses and factories.
2. Advanced Safety Features:
   • Emergency Stop Switch: Quickly halts all operations in an emergency, ensuring operator safety.
   • Electromagnetic Service Brake: Provides reliable stopping power, even on inclines, for added security.
3. Efficient and Powerful:
   • 1 hp Drive Motor & 3 hp Lifting Motor: Ensures smooth and powerful operation, allowing for quick and efficient material handling.
   • 24V/80Ah Battery: Offers extended operational time, minimizing downtime and increasing productivity.
4. User-Friendly Operation:
   • Ergonomic Control Handle: Simplifies operation with intuitive controls for lifting, lowering, and driving.
   • Smooth Maneuverability: Equipped with polyurethane wheels for smooth and stable movement on various surfaces.
5. Robust and Durable Construction:
   • High-Quality Components: Built with durable materials and high-quality components to withstand rigorous use.
   • Regular Maintenance Guidelines: Includes comprehensive maintenance instructions to ensure longevity and optimal performance.

Technical Specifications

• Drive Mode: Electric (battery)

• Rated Load: 3307 lbs (1500 kg)

• Load Center Distance: 19.7 inches (500 mm)

• Wheels: Polyurethane

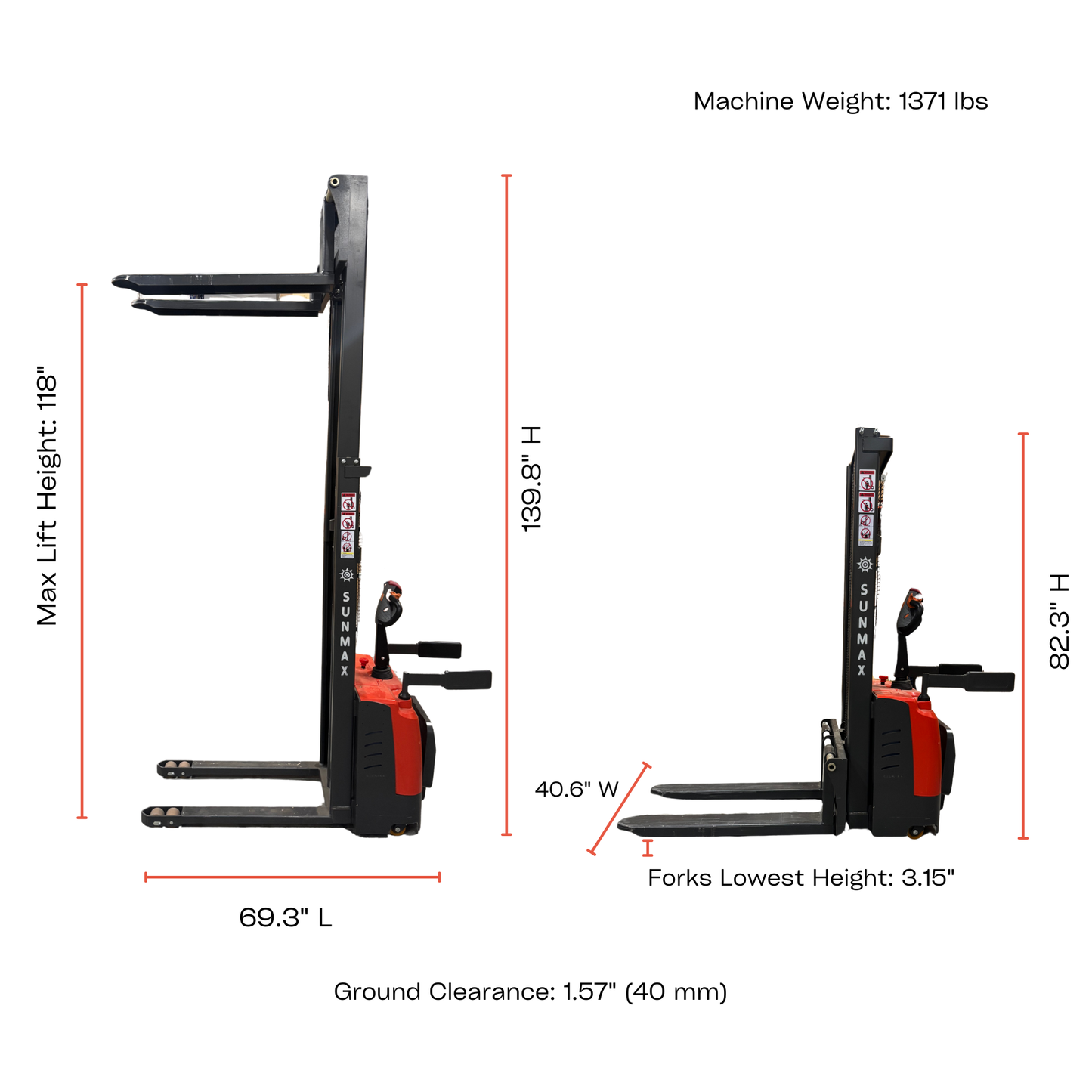

• Lifting Height: 9.8 feet (3000 mm)

• Height When Retracted: 82.3 inches (2090 mm)

• Height When Lowering: 3.5 inches (90 mm)

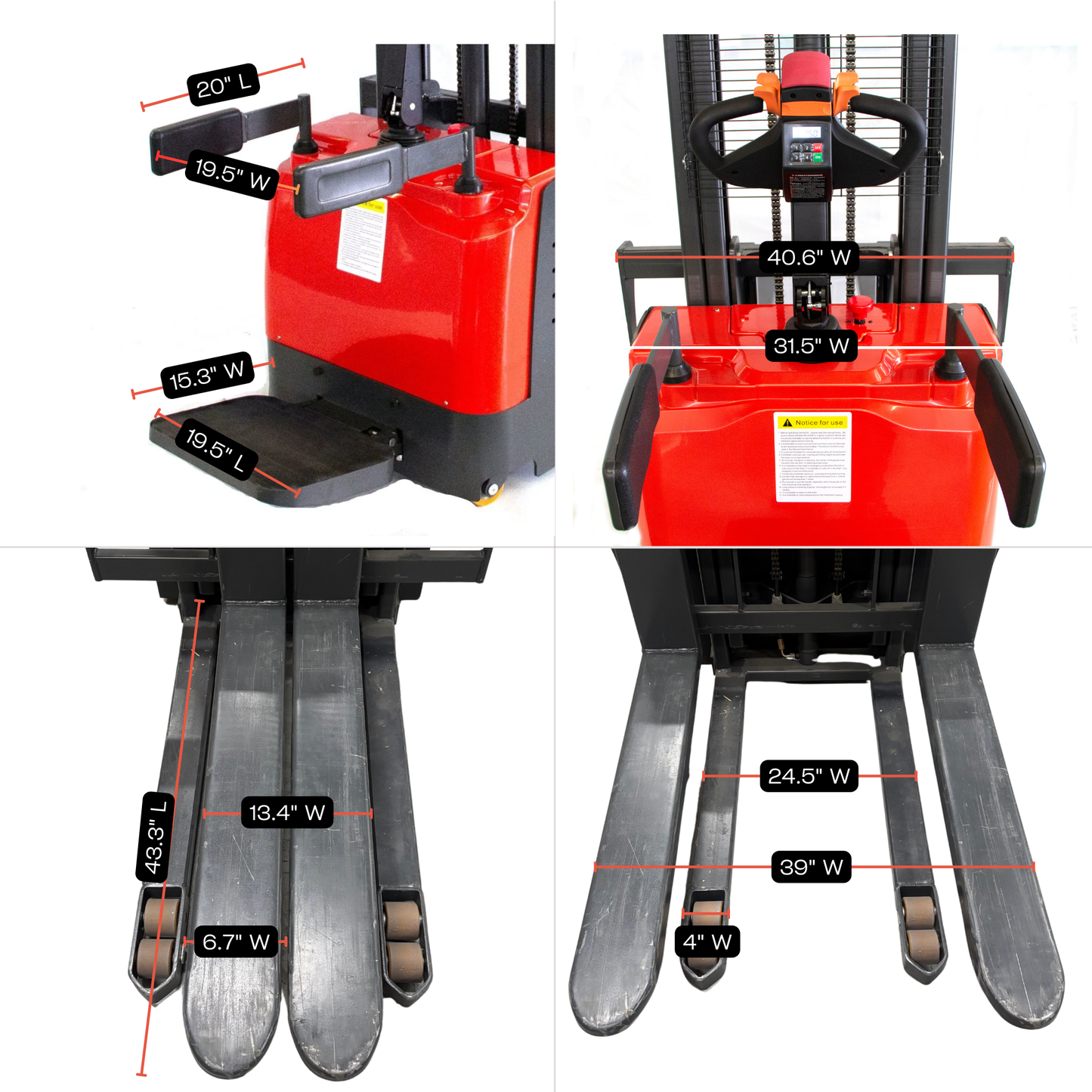

• Fork Size: 2.4 x 6.7 x 43.3 inches (60 x 170 x 1100 mm)

• Turning Radius: 63.0 inches (1600 mm)

• Travel Speed Full/No Load: 2.5/3.5 mph (4/5.6 km/h)

• Hoisting Speed Full Load/No Load: 0.46 ft/s (0.14 m/s)

• Descending Speed Full Load/No Load: 0.33 ft/s (0.10 m/s)

• Gradeability Loading/Unloading: 3%/7%

• Service Brake: Electromagnetic

• Drive Motor Power: 1 hp (0.75 kW)

• Increase Motor Power: 3 hp (2.2 kW)

• Battery Voltage/Capacity: 24V/80Ah

• Self-weight (with battery): 1371 lbs (622kg)

• Noise Level at Driver's Ear: ≤70 dB(A)
